Features :
1. SMD version .
2. High current ,high power ,high efficiency and low core loss and low DCR with
flat wire design ..
3. Magnetically shielded ..
4. Low stray field .
| Part Number | Picture | width ( mm ) | length ( mm ) | height ( mm ) | Specification |
|---|---|---|---|---|---|
| SHI-055040FS |  |
5.5 | 5.2 | 4.0 |  |
| SHI-070030DD |  |
7.0 | 7.0 | 3.0 | |
| SHI-070040DD |  |
7.0 | 7.1 | 4.0 | |
| SHI-070050DD |  |
7.0 | 7.1 | 5.0 | |
| SHI-100050MZ |  |
10.2 | 10.2 | 5.0 | |
| SHI-104040SD |  |
10.4 | 10.2 | 4.0 | |
| SHI-105050DD |  |
10.5 | 10.2 | 5.0 | |
| SHI-106030FS |  |
10.6 | 10.6 | 3.0 | |
| SHI-115100DD |  |
11.5 | 10 | 10 | |
| SHI-124056MZ |  |
12.4 | 12.4 | 5.6 | |
| Part Number | Picture | width ( mm ) | length ( mm ) | height ( mm ) | Specification |
| SHI-125050DD |  |
12.5 | 12.5 | 5.0 | |
| SHI-125065DD |  |
12.5 | 12.5 | 6.5 | |
| SHI-130035DD |  |
13 | 13 | 3.5 | |
| SHI-130050SD |  |
13 | 13 | 5.0 | |
| SHI-130065SD |  |
13 | 13 | 6.5 | |
| SHI-130066DD |  |
13 | 13 | 6.3 | |
| SHI-130080DD |  |
13 | 13.2 | 8.0 | |
| SHI-183065DD |  |
18.3 | 18.2 | 6.5 | |
| SHI-183090DD |  |
18.3 | 18.2 | 9.2 | |
| SHI-192086MZ |  |
19.2 | 18.7 | 8.64 | |
| Part Number | Picture | width ( mm ) | length ( mm ) | height ( mm ) | Specification |
| SHI-192094MZ |  |
19.2 | 18.7 | 9.4 | |
| SHI-192107MZ |  |
19.2 | 18.7 | 10.67 | |
| SHI-192120MZ |  |
19.2 | 18.7 | 12 | |
| SHI-192130MZ |  |
19.2 | 18.7 | 13 | |
| SHI-192140MZ |  |
19.2 | 18.7 | 14 | |
| SHI-215145MZ |  |
21.5 | 21.5 | 14.5 | |
| SHI-225120MZ |  |
22.5 | 22.0 | 12 | |
| SHI-260090MZ |  |
26 | 28 | 8.95 | |
| SHI-270142MZ |  |
28 | 27.9 | 14.2 | |

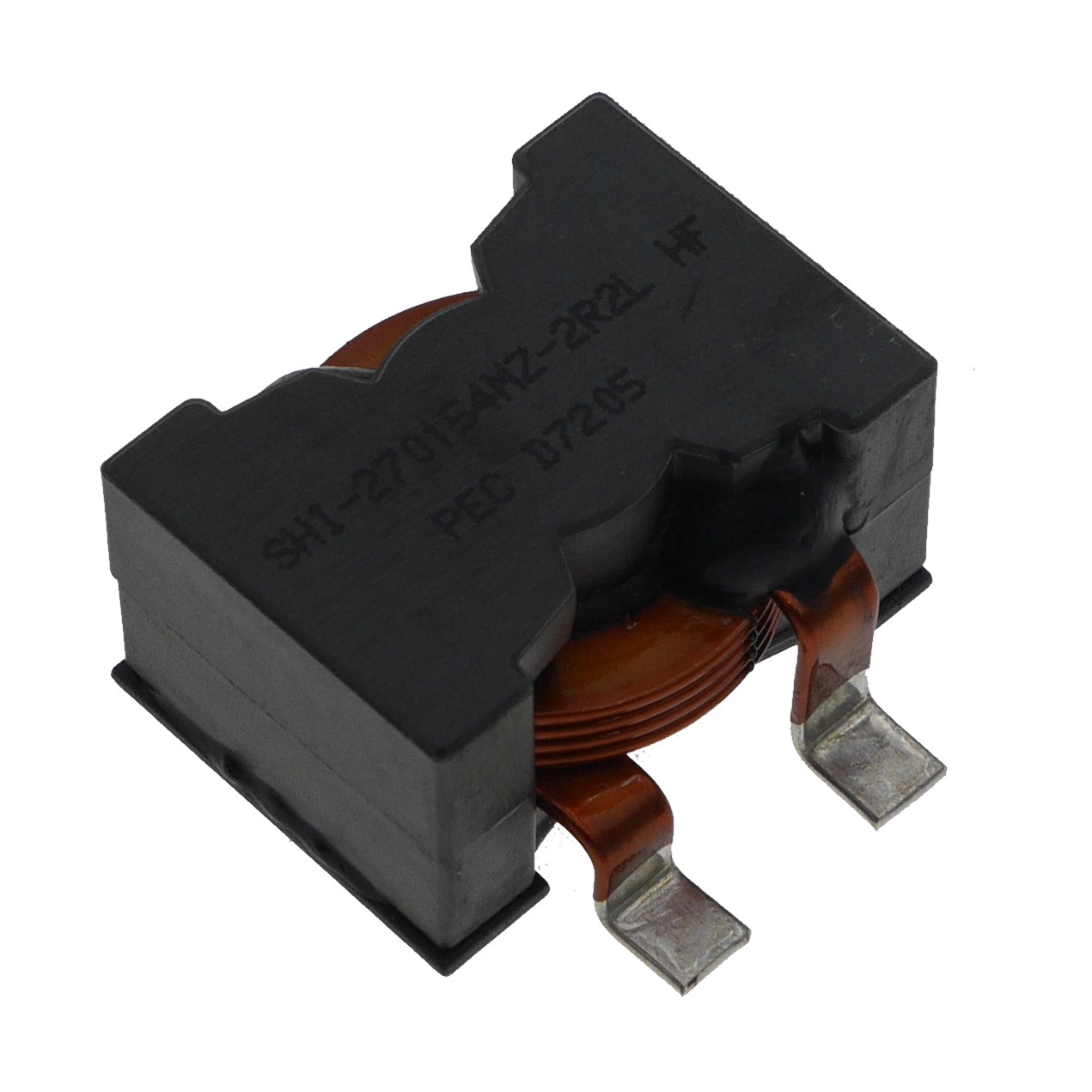

| SHI-270154MZ |  |
27.9 | 28 | 15.4 | |
| Part Number | Picture | width ( mm ) | length ( mm ) | height ( mm ) | Specification |
| SHI-270170MZ |  |
27.9 | 28 | 17 | |
| SHI-270178MZ |  |
27.9 | 28 | 17.8 | |
| SHI-330150MZ |  |
34 | 35 | 15.5 | |
